PigSpy 500TM

A New Concept in Pig Signalling

This "State of the Art" pig signaller is specifically designed to meet the needs of the pipeline pigging industry.

It is portable, robust and totally sealed to give reliable service in the harsh oilfield and other environments.

The signaller is non invasive and will detect the passage of any steel shafted pig without having to fit magnets to it.. Non metallic pigs and spheres can also be detected by the addition of a small rare earth magnet the size of a quarter dollar or a MagPak Delta Module-see product list.

Up to 9 pigs in a row can be logged through by Pig Spy 500 and a full range of remote telemetry options are available to meet every operational scenario.

The inherently safe version of Pig Spy 500 employs a unique induction charging system which means that the signaller body is totally sealed against ingress of gas.

Pig Spy 500 is affordably priced and comes in a smart flight competent carry case with a full 1 year warranty and a Certificate of Compliance.

Learning to use Pig Spy 500 takes as long as it has taken you to read to here.

Pig Spy 500 - The dependable replacement for mechanical signallers.

Contact Ran Macdonald at:-
Email: Enquiries@TUESystems.com
Head Office:
 HQS Wellington
Temple Stairs
Victoria Embankment
London WC2R 2PN
Telephone: +44 (0) 7701 955 332
Fax: +44 (0) 7092 216 752

PIG SPY 500©TM

Model 500 Pig Spy Specification

Battery Type High Quality Rechargeable
Battery Life Greater than 500 recharge cycles
Battery Duration Greater than 30 days

Battery Recharge Method

 Inductive via in built electronics and external inductive charger
Housing Material Flame retardant GRP
Rating IP67
Display Numeric 0 to 9 using LEDs
Operating Temperature Range -20o C to + 70o C
Dimensions 160 mm X 75 mm X 55 mm
Weight 0.65 Kg

Controls

 None. The unit is sealed with no operator controls other than an external magnetic actuator for activating the instrument

Pig Spy Target Specification

Pipe Sizes 2 inch upwards
Wall thickness up to 60mm steel-any diameter
Minimum Pig Speed 0.1 metres/sec
Maximum Distance from Pipewall 3 metres from pipe centre

Special Customer Options

  • Radio Telemetry Link
  • Fibre Optic Link
  • Mobile Telephone Link
  • Low Voltage Current Loop
  • Subsea Signaller with Xenon Strobe
  • Subsea Signaller with Acoustic Telemetry
  • Subsea Signaller with Cable Link
  • Explosion Proof Housing to INIEX 90C.103.832

Statement of Customer Commitment

Should TUE(Systems) be unable to meet your pig detection requirements by supply of its own existing equipment we will design and build equipment for you to ensure that your operational requirements are fully serviced.

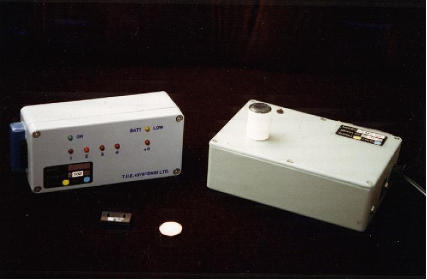

PIGSPY 500 ALONGSIDE IT'S UNIQUE SAFE INDUCTION CHARGER

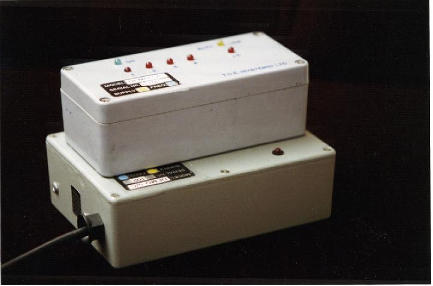

PIGSPY 500 IN THE CHARGING POSITION IN A SAFE LOCATION
